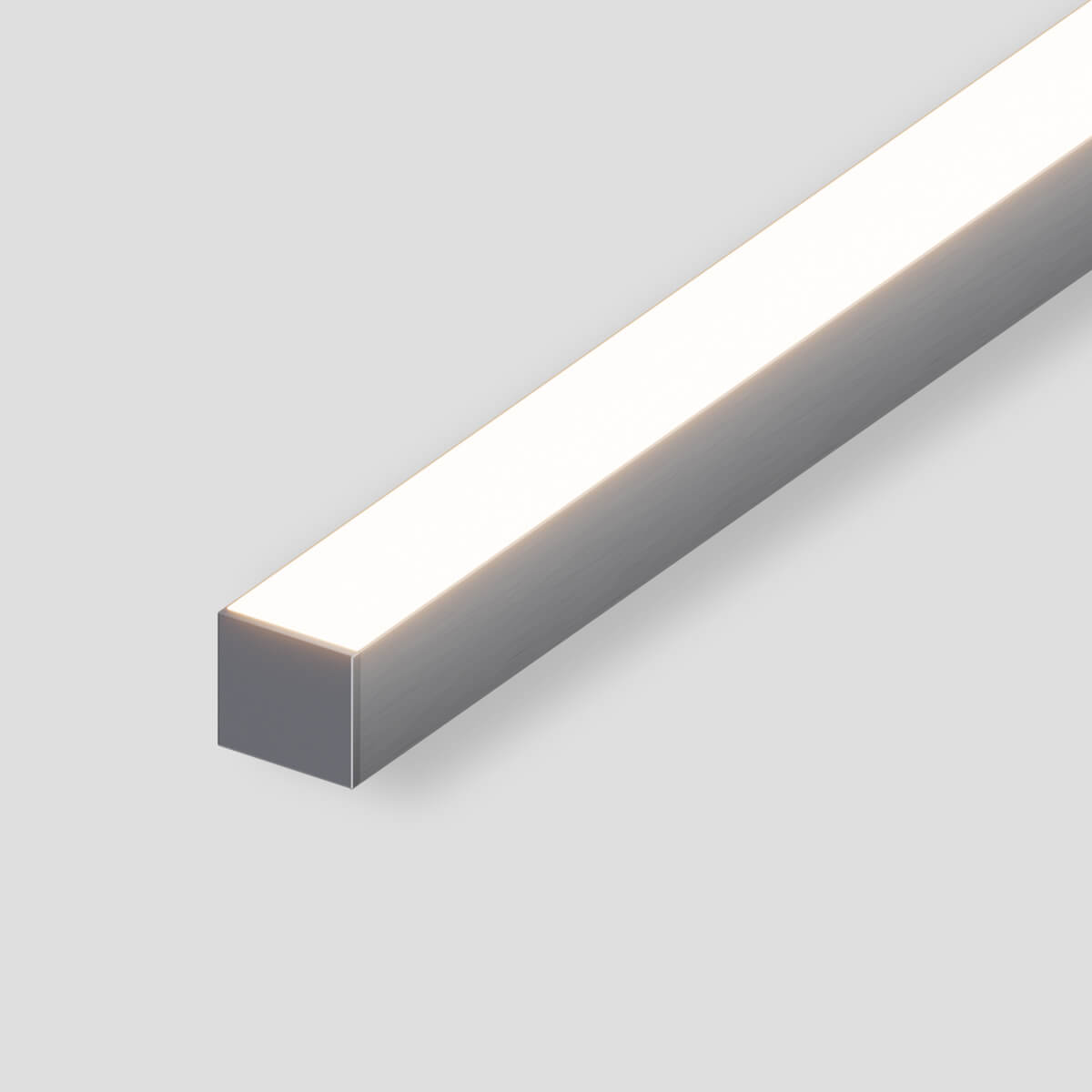

AR1 Fixture

Select Options:

For a fully customizable fixture built to order, please follow the ordering codes listed on the spec sheets. For more information or any questions, please contact our Customer Service team at info@LucettaCI.com or call 1.888.404.8533.

SKU LCI-FAF-AR1- Category Complete Fixtures

Description:

Patented fixture with integrated wire management designed for fully diffused illumination and easy installation. This product is built to order and ready to install to your specifications.

Product Specs:

Environment: Indoor / Damp Location (IP20)
CRI: 98 / 97 / 90
Dimmable: Yes

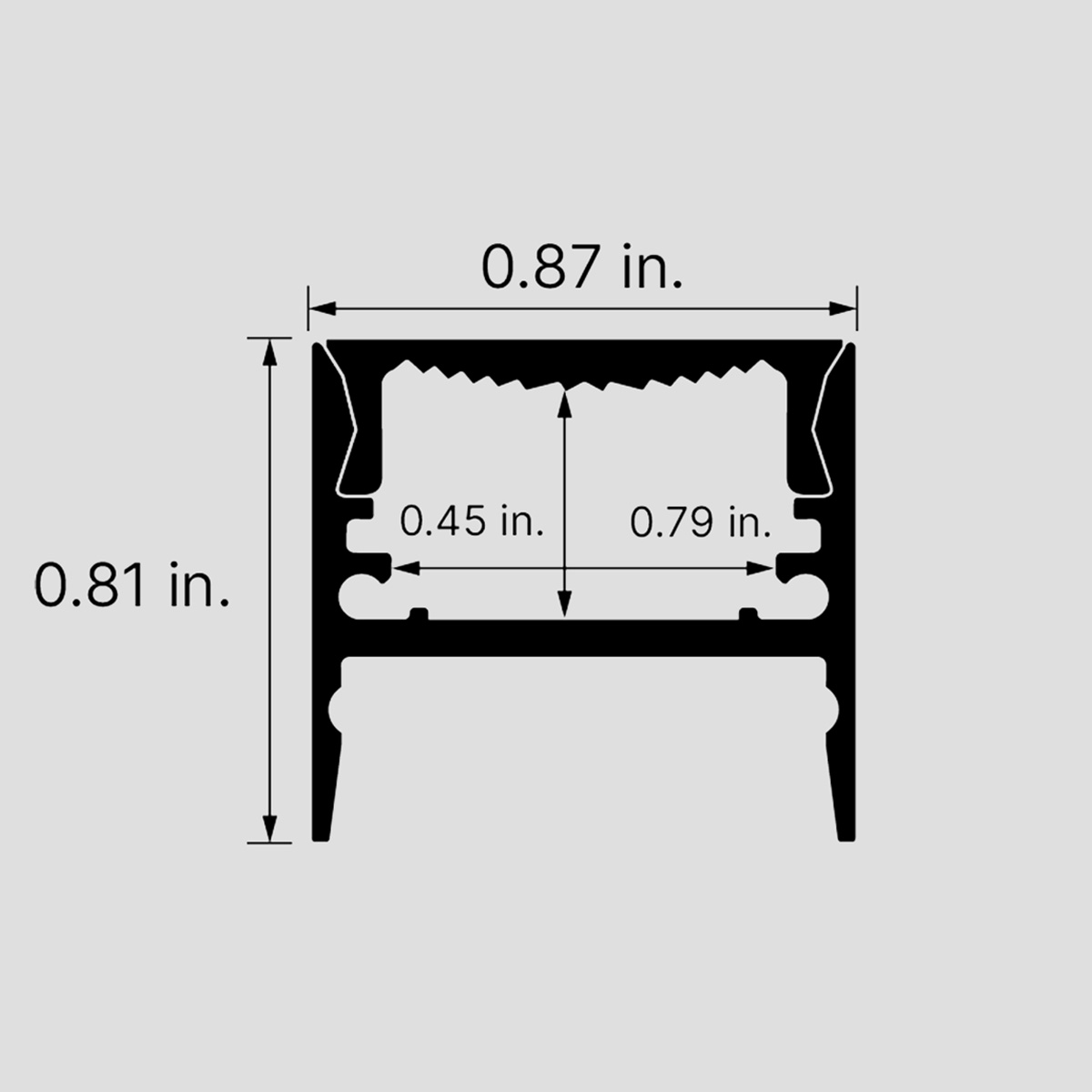

Max Fixture Length: 96.25 in. (including end caps)
Warranty: 97 and 98: 12 Year Limited, 90: 10 Year Limited

Features & Benefits:

Optimized for long-run applications
Precise flush mounting with concealed clips and wire raceway
Architectural-grade polycarbonate lens available

AR1 Fixture ORO™ Spec Sheets

LCI FAF AR1 ORO Specification Sheet.pdf
LCI FAF AR1 ORO COB Specification Sheet.pdf
LCI FAF AR1 ORO Warm Dim Specification Sheet.pdf
LCI FAF AR1 ORO Tunable White Specification Sheet.pdf

AR1 Fixture ARGENTO™ Spec Sheets

AR1 Fixture BRONZO™ Spec Sheets

LCI FAF AR1 BRONZO™ Specification Sheet.pdf

IP Rating	IP20 (Indoor Dry Location)
Finish	Aluminum, Black, White
CCT	2400K, 2700K, 3000K, 3500K, 1800K-4000K, 1800K-6500K, 2700K-6500K, 3000K-1800K
Lumens	100+, 150+, 200+, 250+, 300+, 350+, 400+, 500+, 600+, 800+, 1000+
Family	ARCHITECTURAL
Color Type	RGBTW, RGBW, Static White, Tunable White, Warm Dim
Bend	No Bend – Rigid

Save the desired product SKU and login to order using our online portal.

Don't have an account? Contact customer service to obtain an account with us.
